30mm Micro 7.5°12V DC Stepper Motor With Gearbox For Fan And Air Conditioning Applications 30BYJ46
Custom BYJ Stepper Motors Tailored to Your Specific Needs:
Logo printing :as your need.
Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
30BYJ46 Series Specifications:
| Model | Voltage(V) | Resistance(Ω) | Step Angle(1-2P)/ (2-2P) | Frequency(PPS) | Pull-in Torque(mN.m) | Self-load Torque(mN.m) | Empty pull-in Frequency(PPS) | Empty pull-out Frequency(PPS) |
| 30BYJ46 | 12 | 100 | (7.5°/85.25) /(15°/85.25) | 100 | ≥147 | ≥78.4 | ≥350 | ≥800 |
| 12 | 130 | (7.5°/85.25) /(15°/85.25) | 100 | ≥98 | ≥39.2 | ≥350 | ≥800 |
| 12 | 200 | (7.5°/85.25) /(15°/85.25) | 100 | ≥58.8 | ≥39.2 | ≥350 | ≥600 |

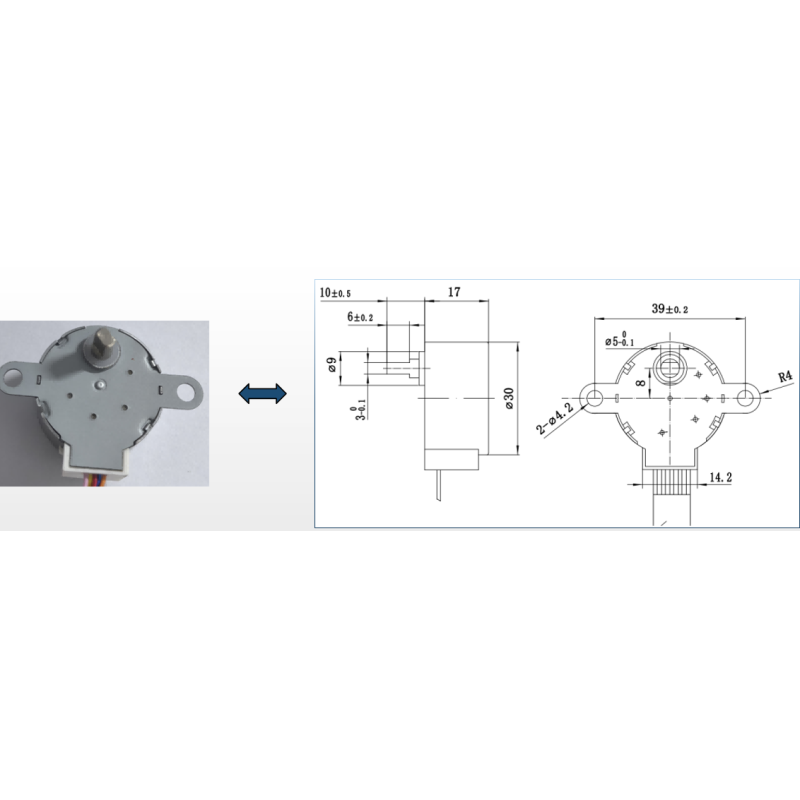

30BYJ46 DIMENSIONS: mm
30BYJ46 Torque Curve:
30BYJ46 Stepper Motor Applications:
• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.
Workshop :
Advantages:
1. Stable Performance: Permanent magnet geared stepper motor, 4-phase 8-beat control, step angle 5.625°, high gear ratio 1:64, holding torque ≥ 78.4 mN·m, adapted to 24V rated voltage, no-load pull-in frequency 600pps, precise positioning and sufficient output torque to meet the driving needs of various small equipment.
2. Quiet and Durable, Suitable for Long-Term Working Conditions: Adopting optimized winding structure and quiet bearings, the operating noise is ≤ 38dB, no interference in home/office scenarios; insulation class Class B, wide temperature adaptation from -20℃ to +50℃, continuous operation life over 100,000 hours, reducing the after-sales maintenance cost of end products.
3. Multi-Scene Adaptation, Strong Compatibility: Widely used in smart home (smart door locks, automatic curtains), household appliances (air conditioner louver drive, fan oscillation), security equipment (surveillance PTZ), industrial control and other fields. Standardized size design, easy installation, and can directly replace products of the same model.
4. Factory Direct Supply, Customization + Fast Delivery: Supports OEM/ODM customization, and can adjust shaft length, lead wire length, and terminal type (FPC/insert) as needed; MOQ 100 units, samples in stock, mass order delivery time 7-12 days, 18-month warranty, 24-hour technical team responds to debugging issues.
Samples:
